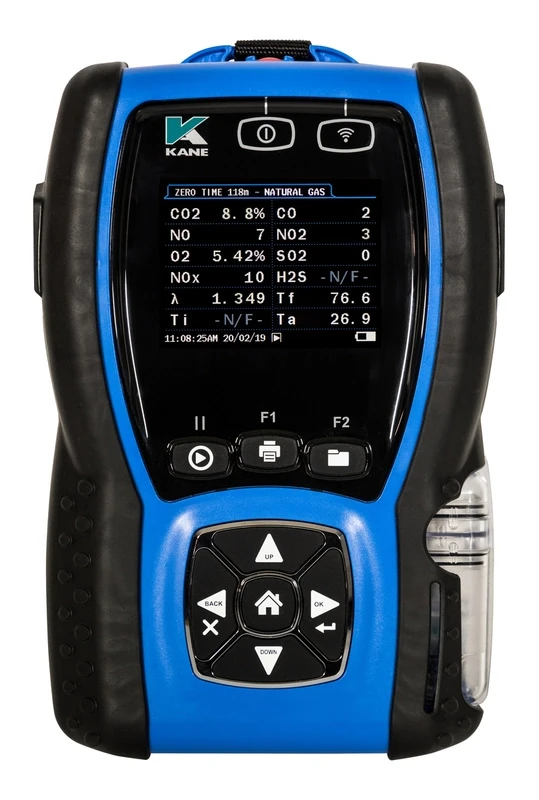

KANE460

HVACR analyser - Heating, Cooling, Refrigeration & IAQ

KANE460

HVACR analyser - Heating, Cooling, Refrigeration & IAQ

Heating, Cooling, Refrigeration & IAQ Analyser

  • Test domestic & commercial heating & hot water systems
  • Commission boilers, perform sweep & room CO migration tests
  • Commission & test heat pumps, A/C & refrigeration systems - No manifold & hoses required
  • Measure building IAQ & ventilation
  • KANE LINK wireless measurements
  • O2 & CO with NOx option
  • 2 psi / 160 mbar pressure sensor for flue draught, system & tightness tests
  • Hydrophobic water trap stops vapour damage
  • Log, store & transfer tests to KANE LIVE App
  • Fast & easy operation with large colour graphic display & rugged, compact design

Features

  • 10 year warranty when serviced & recertified by KANE

  • Backed by KANE CARE - We promise to never let you down or your money back

  • KANE460 supplied with CP2 combustion probe, 2 psi pressure sensor & hose, CU12VDC2A21 charger, MSC00017 handset pouch

  • KANE460 HVACR KIT option includes:

  • KANE-DTHA2 anemometer & 20128 extender

    • KANE-HUB4 kit with 2 × WPCP wireless temperature clamp probes & 2 × WPP wireless pass through pressure probes

    • KANE-IRP3 Infra-red printer & 20106 backpack

From €1,355.00 exc VAT

Applications

  • Test domestic & commercial gas, oil & biomass appliance performance & safety
  • Perform structured let by, tightness & flue draught tests
  • New boiler structured commissioning test
  • Appliance sweep test for CO leaks
  • Simultaneous 4 room CO migration test with up to 4 KANE79 wireless CO monitors (option)
  • Heat pump temperature differential test
  • A/C & refrigeration superheat & subcool test
  • Building ventilation & IAQ test with KANE-DTHA2 wireless anemometer for airflow, temp & R

Measures

  • O2 0-21%
  • CO 0-10,000ppm H2 compensated with over range protection
  • NO 0-5,000ppm (option)
  • Temperature - inlet / flue gas / differential / ambient
  • High accuracy differential pressure meter +/- 160mbar

Calculates

  • CO2 - 0-99%
  • CO/CO2 ratio
  • Excess air
  • Combustion efficiency
  • NOx (if NO sensor fitted)
  • A/C & Refrigeration subcool & superheat

Fuel Types

  • 12 standard fuels including: Natural Gas, LPG, Butane, Propane, Light Oil, Heavy Oil, plus 5 user fuels
  • 40 refrigerants including: R22, R32, R134a, R290 & R410A

Box Contents

  • Supplied with pressure hose, CP2 probe, MSC00117 protective pouch & CU12VDC2A21 charger

  • Optional HVACR KIT kit enables wireless A/C & Refrigeration & IAQ tests

  • Option to link up to 4 KANE79 CO monitors for simultaneous room CO migration tests

Videos

KANE460 - Checking and Replacing the Watertrap

KANE460 - Checking the Watertrap and Filters

KANE460 - Connecting a Probe

KANE460 - Connecting to Link Devices

KANE460 - First Charge

KANE460 - Setting the Time and Date

Service Price

YEAR 1-4 YEAR 5
258 € 390 €

All prices are in € Euros and are exclusive of VAT.

Software

Install

KANE Live (Apple app)

Install

KANE LIVE Mobile App

Install

KANE Live (Android app)
